Equipment Function

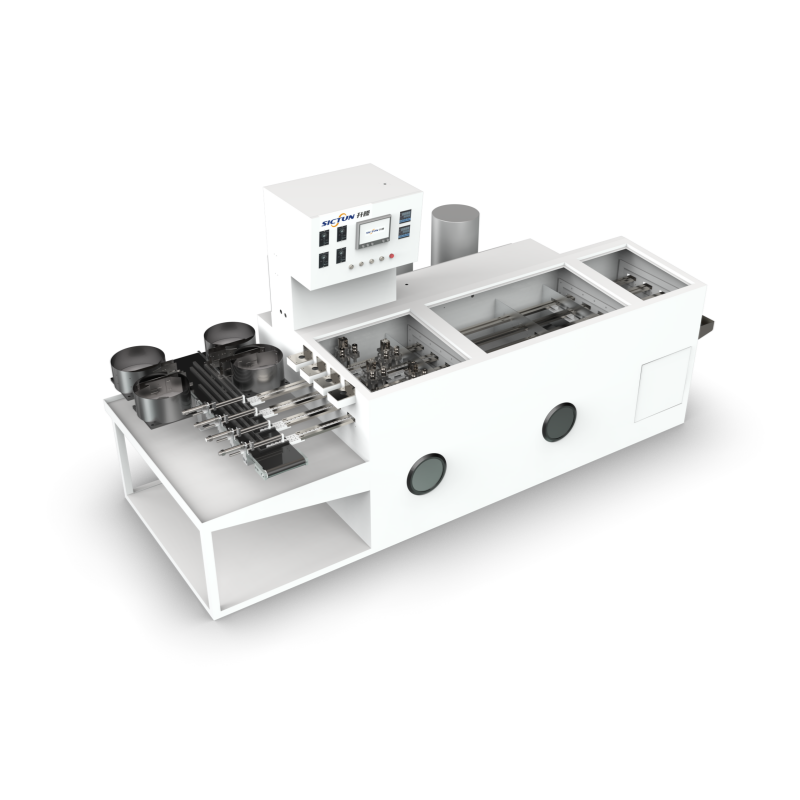

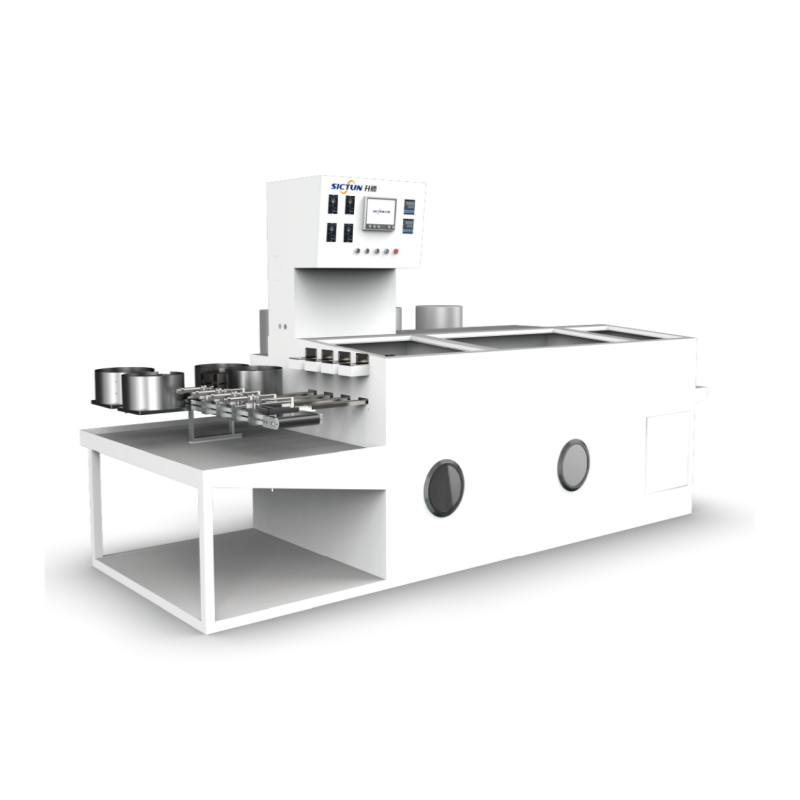

The Outer Ring Pass-Through Cleaning Machine is a kind of outer ring cleaning machine specially developed according to the characteristics of outer rings. It integrates the functions of demangnetization, brush cleaning, ultrasonic cleaning, high-pressure cleaning and hot-air drying, effectively removing the burrs along the edges and the debris within the dustproof grooves. It boasts higher cleaning efficiency, lower cost and a better yield rate of finished products.
Brush Cleaning | Ultrasonic Cavitation | Three-Stage Filtration |
Cleanliness of the Grooves Improved By 90% Without Scratches | Removal Rate of Stubborn Oil Improved By 300% | Lifetime of Oil Exteneded By 200% |
Equipment Characteristics
Plate Demagnetization: Remanence<0.3mT
Brush Cleaning: Cylinder Positioning → Deburring with Rotary Wool Brush (in the Grooves/Edges)
Ultrasonic Cleaning: 28kHz/100W Oscillator Removes Impurities via Cavitation Effect (Instantaneous High-Pressure Blast)
High-Pressure Showering: Residual Particles Flushed Away By Oil Pump
Hot-Air Drying: Rapid Drying via 60-70℃ Forced Air
Three-Stage Filtration: 5um→3um→1um (10 cores) Purify Oil In A Circular Manner
Equipment Configuration |
PLC | OMRON, HIWIN, INOVANCE, etc. |
Low-Voltage Electrical Apparatus | SCHNEIDER |
Oil Pump | Nanfang Pump, with nationwide warranty |
Filter | BY(Biyun), highly recognized in the industry |
Ultrasonic | High-power ultrasonic transducer, two-year warranty |
Control and Protection Functions
